Controlling your RSP and Radio with Ham Radio Deluxe

Postby Roger » Sun Oct 21, 2018 2:52 am

Here is an appnote from SDRplay on interfacing HRD, SDRuno and your radio.

https://www.sdrplay.com/wp-content/uploads/2018/07/AffordableProtectionRev2.pdf

This is a video to go with the appnote above

https://www.youtube.com/watch?v=fIDoNpLQ3MA&feature=youtu.be

Roger

Reason: No reason

Techwizard100
Posts: 2
Joined: Wed Nov 07, 2018 1:29 pm

Re: Controlling your RSP and Radio with Ham Radio Deluxe

Postby Techwizard100 » Wed Nov 07, 2018 2:24 pm

Yaesu FT991A + Omni-Rig + HRD - PTT keying after about 30 seconds by itself.

Rig
Yaesu FT991A - Latest v2 firmware
HRD - Latest rev
Connected to PC via USB cable
Omnirig - Set to Com4 to control FT991A

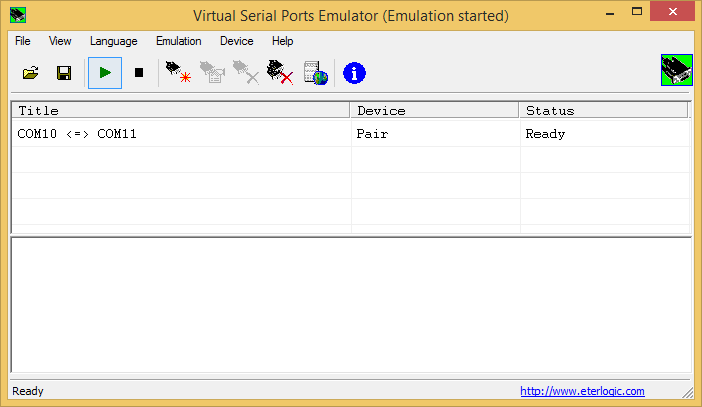

Virtual Serial Port Emulator - Setup Com Port Pair (Com 10 and 11) - Port show "Ready"

SDRuno 1.22 - Connected Main window to OmniRig com 4 - Shows Online
SDRuno + Omni-Rig works fine.

SDRuno + Omni-Rig + HRD on Com 11 - drops the connection and invokes PTT.

Tried a combination of DTR/RTS on Omni-Rig and HRD. Can't find the right combination. Any ideas appreciated.
Last edited by Techwizard100 on Thu Jan 01, 1970 12:00 am, edited 0 times in total.
Reason: No reason

Roger
Posts: 170
Joined: Fri Dec 29, 2017 7:59 pm

Re: Controlling your RSP and Radio with Ham Radio Deluxe

Postby Roger » Wed Nov 07, 2018 6:09 pm

I assume you are using Omni-Rig to connect to your Yaesu and SDRuno is connected to OmniRig.

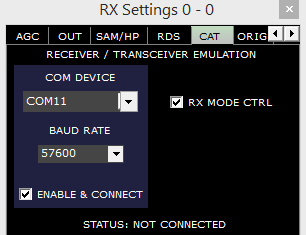

Then you connect HRD to SDRuno via the COM port pair 10/11 via the CAT port on SDRuno.

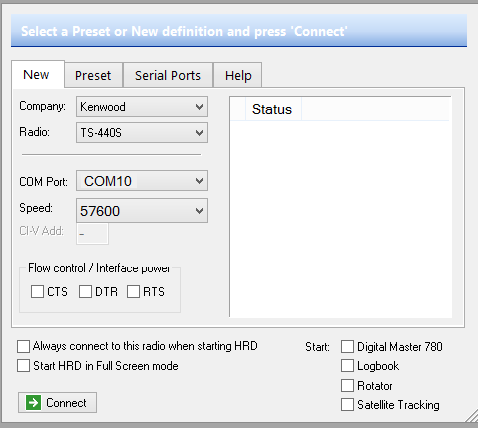

Here are the settings in HRD. I find the Kenwood TS-440S gives the best performance. Leave RTS, CTS, DT unchecked


Reason: No reason

Techwizard100
Posts: 2
Joined: Wed Nov 07, 2018 1:29 pm

Re: Controlling your RSP and Radio with Ham Radio Deluxe

Postby Techwizard100 » Thu Nov 08, 2018 1:34 am

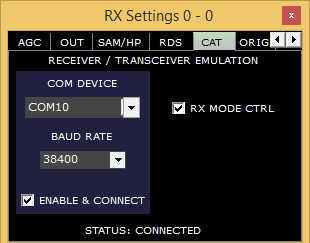

Yep, I am currently connecting SDRuno CAT to Com 10 and HRD to Com 11. No CTS, DTR. It's a pair, but I will try connecting SDR to Com 11 and HRD to Com 10 and see if any difference.

73
David
WZ4SKY
Last edited by Techwizard100 on Thu Jan 01, 1970 12:00 am, edited 0 times in total.
Reason: No reason

N0FLA
Posts: 2
Joined: Wed Nov 14, 2018 3:54 pm

Re: Controlling your RSP and Radio with Ham Radio Deluxe

Postby N0FLA » Wed Nov 14, 2018 4:30 pm

SDRUno Version: Rel. 1.22
HRD Version: 6.4.0.902
Radio: Yaesu FTDX 3000

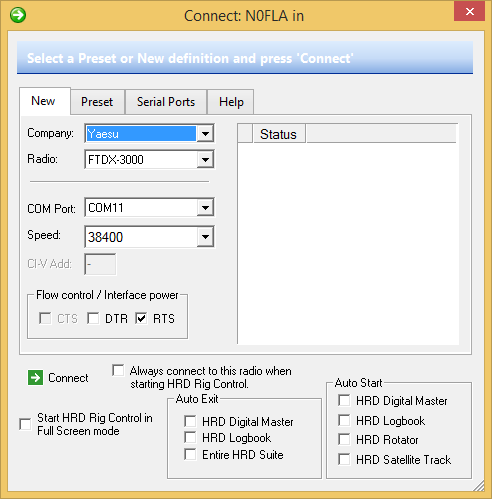

I have a different issue I have the system setup as instructed in the video "Using Ham Radio Deluxe with SDRuno (AN008)"




the issue is that HRD loads and sees the VFO frequency, on initial load, however if I change the frequency on either HRD, SDRUno or on the radio itself HRD does nothing. If I make a change in frequency in HRD it changes but SDRUno nor the radio changes. The frequency changes as it should in SDRUno and is reflected in the radio if I change VFO on SDRuno. Then after about 30 seconds, the radio will go into TX on its own.

SDRUno and the radio works as expected with no issues.

Dump from the VSPE
43 4F 30 31 3B 56 44 3B 56 47 3B 49 46 CO01;VD;VG;IF
3B 53 4D 30 3B 42 59 3B 55 4C 3B 52 49 30 3B 52 ;SM0;BY;UL;RI0;R
49 31 3B 52 53 3B I1;RS;
IF;FA07164504;IF;IF;IF;IF;IF;IF;
IF;SM0;BY;UL;RI0;RI1;RS;I
F;SM0;AG0;RG0;RG0;RG0;MG;RL0;RL0;RL0;IS0;IS0;IS0;FA07166224;SH0;SH0;SH0;FA07167392;CO01;VD;VG;AN0;AN0;AN
0;AN0;AN0;AN0;AN0;AN0;AN0;RA0;RA0;RA0;RA0;RA0;RA0;RA0;RA0;RA0;FA07168220;BC0;BC0;BC0;BI;CS;CO00;FS;KR;NB0;NB0;NB0;NB0;NB0;NB0;NR0;NR0;NR0;BP00;SC;SC;ML0;ML0;ML0;NA0;PA0;PA0;PA0;PA0;PA0;PA0;MX;VX;TX;TS;PR0;PR0;PR0;PR1;PR1;PR1;LK;RM6;RM6;RM6;RM6;RM6;RM6;RM
6;RM6;RM6;PS;
Last edited by N0FLA on Thu Jan 01, 1970 12:00 am, edited 0 times in total.
Reason: No reason

Roger
Posts: 170
Joined: Fri Dec 29, 2017 7:59 pm

Re: Controlling your RSP and Radio with Ham Radio Deluxe

Postby Roger » Wed Nov 14, 2018 5:18 pm

You need to configure HRD to communicate with SDRuno using the Kenwood protocol (not Yaesu) as shown in my post above and detailed in the SDRplay appnote AN008 http://www.sdrplay.com/docs/HRDandSDRuno.pdf.

In summary HRD <---> Kenwood Protocol <---> SDRuno <---> Yaesu Protocol <---> Yaesu Radio

Reason: No reason

N0FLA
Posts: 2
Joined: Wed Nov 14, 2018 3:54 pm

Re: Controlling your RSP and Radio with Ham Radio Deluxe

Postby N0FLA » Thu Nov 15, 2018 4:11 pm

Thanks for the reply, I thought that was just the radio you were using. Works great now.
Last edited by N0FLA on Thu Jan 01, 1970 12:00 am, edited 0 times in total.
Reason: No reason
