The strongest on air signal I ever received

General discussions
Post Reply
glovisol
Posts: 662
Joined: Thu May 10, 2018 6:42 pm
Location: Piedmont, Italy

The strongest on air signal I ever received

Post by glovisol » Tue Feb 12, 2019 6:43 pm

This is the strongest it came into my receiver ever: Radio China International on 7360 KHz from Cerrik in the Balkans. We are talking about -29.9 dBm + 3 dB insertion loss on the balun transformer makes -26.9 dBm coming out of my Beverage!

A little more and could burn the guts out of my RSPduo....
Attachments

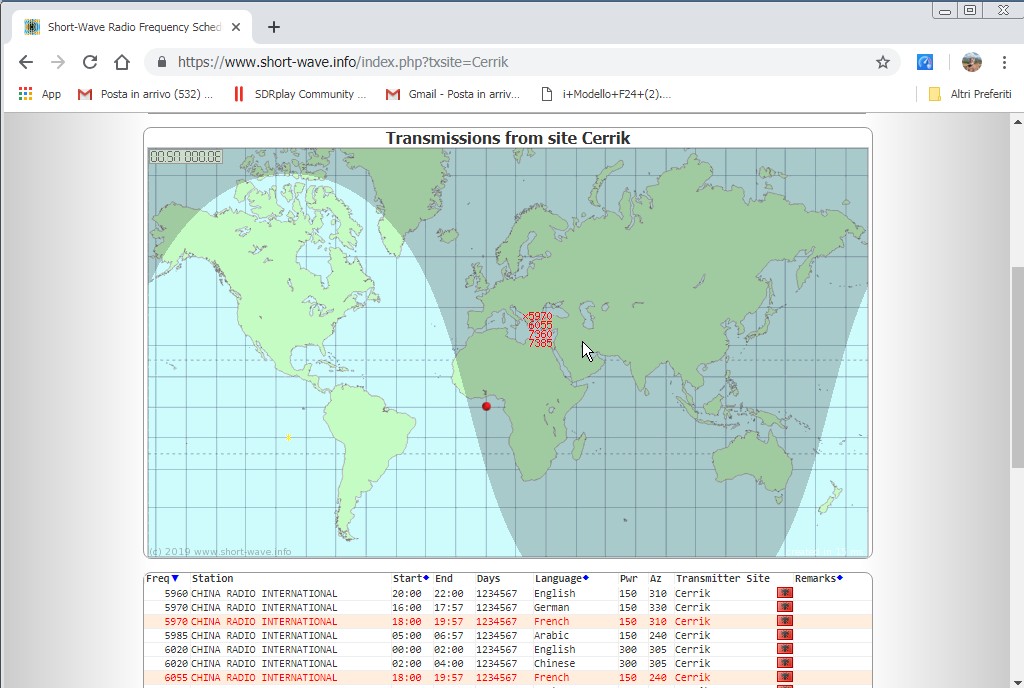

Cerrik site in the Balkans.jpg
Cerrik site in the Balkans.jpg (139.05 KiB) Viewed 2476 times

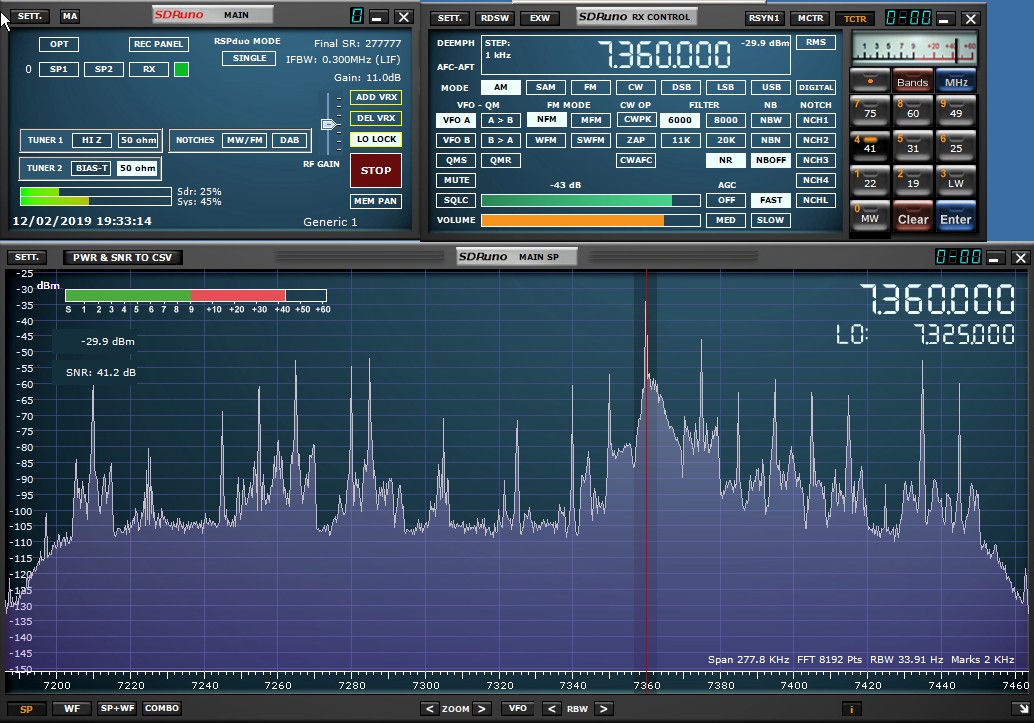

China Radio International.jpg
China Radio International.jpg (199.04 KiB) Viewed 2476 times

Reason: No reason

EnriqueLin
Posts: 1
Joined: Tue Feb 12, 2019 10:35 am

Re: The strongest on air signal I ever received

Post by EnriqueLin » Wed Feb 13, 2019 1:39 pm

That's massive! Why was it that strong do you think, Glovisol?
Last edited by EnriqueLin on Thu Jan 01, 1970 12:00 am, edited 0 times in total.
Reason: No reason

glovisol
Posts: 662
Joined: Thu May 10, 2018 6:42 pm
Location: Piedmont, Italy

Re: The strongest on air signal I ever received

Post by glovisol » Wed Feb 13, 2019 3:43 pm

Hi EnriqueLin

Radio China International broadcasts in various languages during the 24 hours and according to schedule is sometimes off air. This signal strength was taken yesterday, Feb. 12, 2019, at 19:30 GMT (20:30 local time). I shall tune it in again this evening to check on field strength. This station is in Cerrik, approx. 1500 km from my antenna and is probably radiating an ERP (TX power + antenna gain) in the order of 800 / 1000 KW, but I shall attempt to compute it later on.

Reason: No reason

glovisol
Posts: 662
Joined: Thu May 10, 2018 6:42 pm
Location: Piedmont, Italy

Re: The strongest on air signal I ever received

Post by glovisol » Wed Feb 13, 2019 8:19 pm

This evening (13.2.19 @ 19:00 GMT) Radio China International is coming in even stronger at -27.4 dBm+ 3 dB = -24.4 dBm, but at a different frequency: 7.285 KHz. My poor RSP duo must have the gain at minimum setting and even with this setting it is on the brink of overloading! Must get the attenuators back....
Attachments

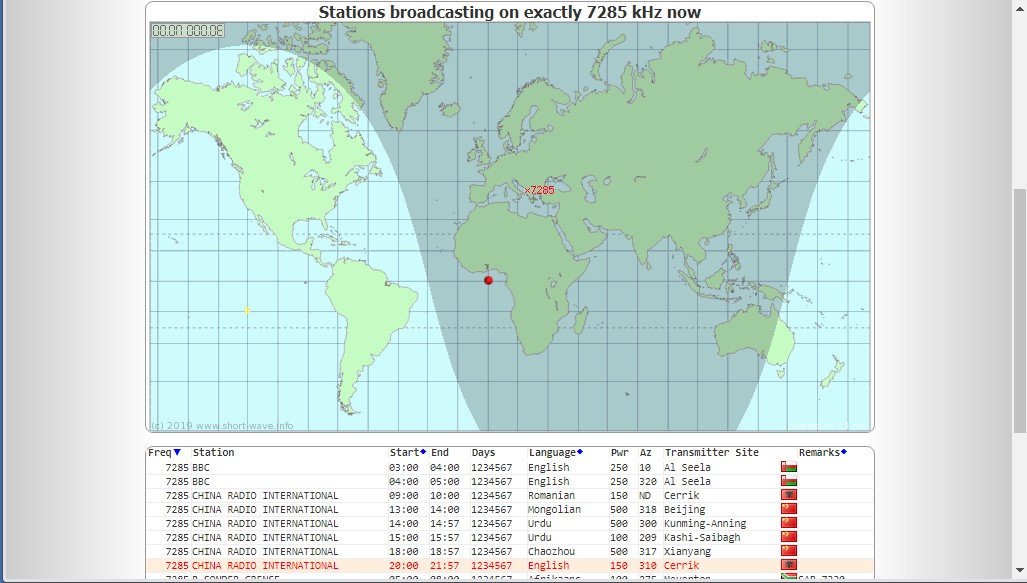

Cerrick schedule 13.2.19.jpg
Cerrick schedule 13.2.19.jpg (122.62 KiB) Viewed 2234 times

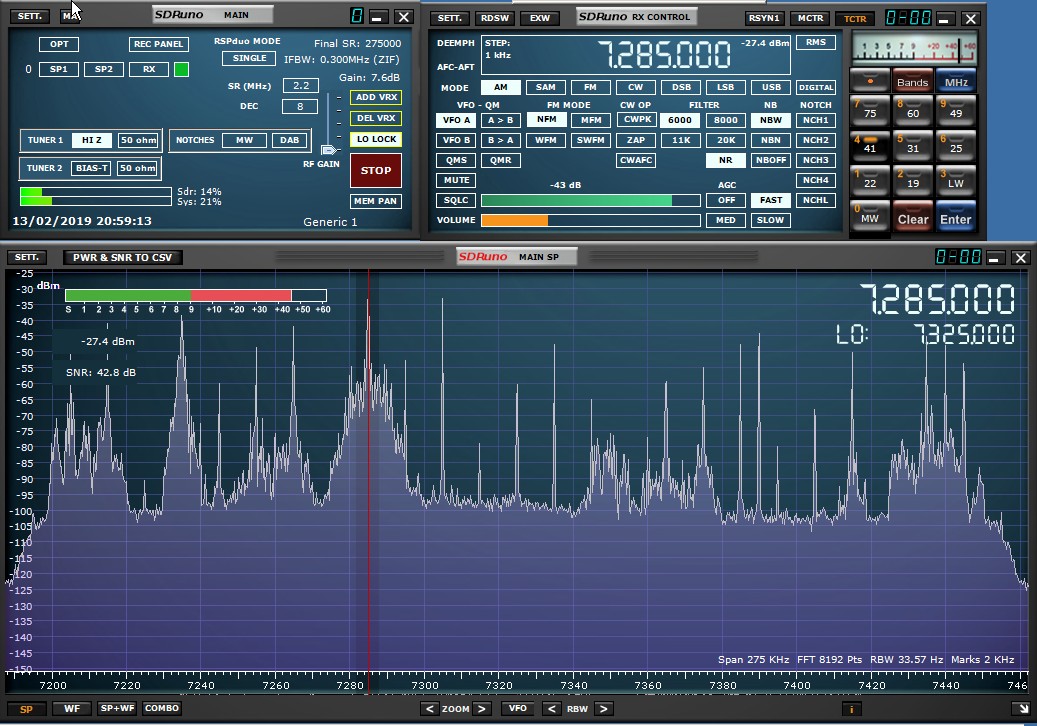

China Radio International 13.2.19.jpg
China Radio International 13.2.19.jpg (204.43 KiB) Viewed 2234 times

Reason: No reason
