Ready made frequency lists for SDRuno

Discussions about everything to do with SDRuno
Post Reply
jon
Posts: 432
Joined: Tue Jan 06, 2015 10:48 am

Ready made frequency lists for SDRuno

Post by jon » Tue May 28, 2019 2:48 pm

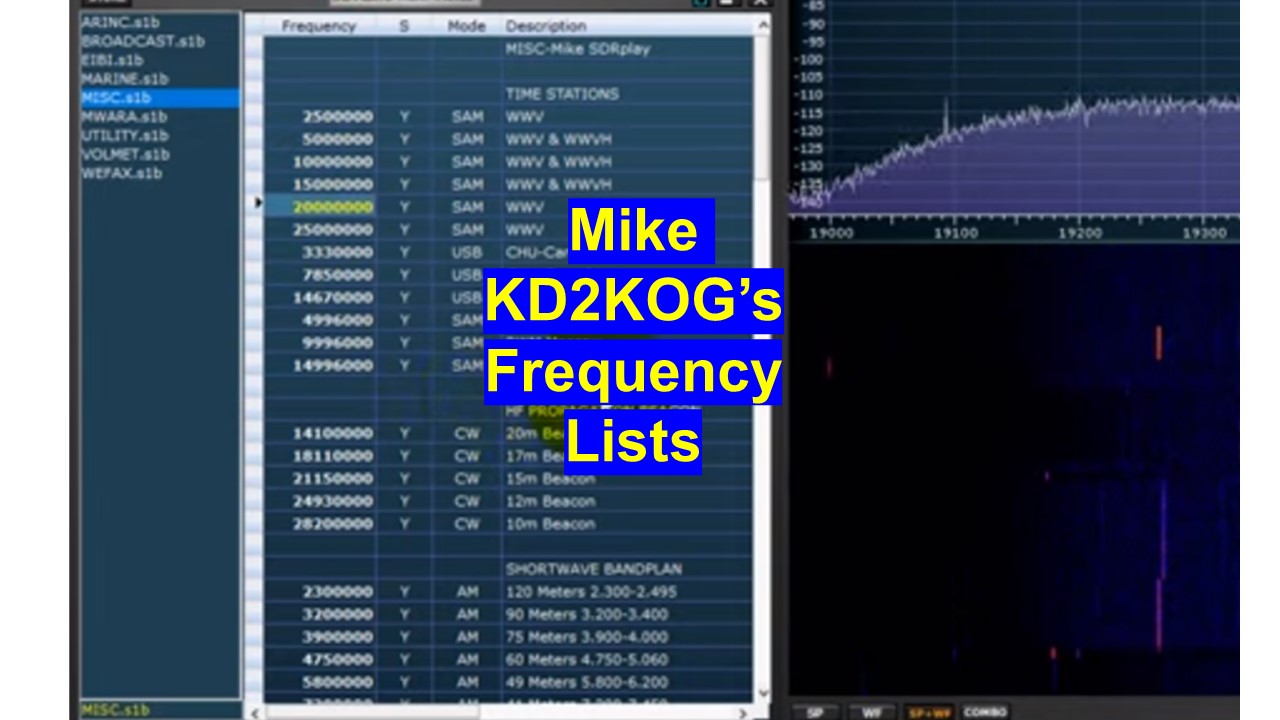

Here's a video which shows how to access Mike, KD2KOG's set of frequency lists for SDRuno. Go to: https://youtu.be/KiNjsvKHVeU

This is the latest in Mike's HamGuides YouTube series which enjoy their own YouTube Channel https://www.youtube.com/c/SDRplayHamGuides - this informal tutorial series is based on user requests and you can request future topics by contacting Mike. The HamGuides home page is here: https://www.sdrplay.com/sdrplayhamguides/


Reason: No reason

DL4YBP
Posts: 3
Joined: Tue Jun 11, 2019 9:16 am

Re: Ready made frequency lists for SDRuno

Post by DL4YBP » Tue Jun 11, 2019 9:23 am

Hi all,
I have read the info about Mike KD2KOG's frequency list for SDRplay, watched his video and found it very helpful. What a work. I downloaded the frequency lists and stored them in the suggested folder. Everything works fine, except one thing which puzzles me. I use Tuner 1 for shortwave and antennas that need 50 Ohms. Whenever I select a frequency from Mike's list the antenna selection changes from 50 Ohms to HI Z. Of course I do not hear anything and I have to select 50 Ohms again. This happens whenever I select a frequency from a memory bank. This does not happen with the
ones which I created on my own. How may this come? How can I change that?
73
Hans, DL4YBP
Last edited by DL4YBP on Thu Jan 01, 1970 12:00 am, edited 0 times in total.
Reason: No reason

DanubeBCL
Posts: 203
Joined: Sat Jul 02, 2016 12:39 pm

Re: Ready made frequency lists for SDRuno

Post by DanubeBCL » Tue Jun 11, 2019 4:06 pm

Mike's memory banks all have "HiZ" in the Port column.
Either remove this "HiZ" or change it manually to AntA or AntB for every record.
Maybe it would be better if Mike would leave the Port column unspecified for SDRPlays which do not have a HiZ or users who do not want to use HiZ.
73, Heinrich

Reason: No reason

DL4YBP
Posts: 3
Joined: Tue Jun 11, 2019 9:16 am

Re: Ready made frequency lists for SDRuno

Post by DL4YBP » Wed Jun 12, 2019 8:33 am

Hallo Heinrich,

So far I had only used the first 3 columns of the SDRuno memory banks for my own lists. That is the reason why I did not see the Port column.
Thank you for your help.

Hans, DL4YBP
Last edited by DL4YBP on Thu Jan 01, 1970 12:00 am, edited 0 times in total.
Reason: No reason

John55
Posts: 5
Joined: Sat Mar 16, 2019 7:14 pm

Re: Ready made frequency lists for SDRuno

Post by John55 » Wed Jun 12, 2019 11:04 pm

DL4YBP wrote:Hallo Heinrich,

So far I had only used the first 3 columns of the SDRuno memory banks for my own lists. That is the reason why I did not see the Port column.
Thank you for your help.

Hans, DL4YBP

Hello Hans,
You can use a spreadsheet like MS Excel, or Libre Office to import the db logs as regular CSV and delete the port column and save as the db or rename the file. Quick and easy to do, or change the port by hand in the database.
Last edited by John55 on Thu Jan 01, 1970 12:00 am, edited 0 times in total.
Reason: No reason

D.C. Alden
Posts: 8
Joined: Wed Mar 20, 2019 2:38 am

Re: Ready made frequency lists for SDRuno

Post by D.C. Alden » Thu Jun 13, 2019 7:44 pm

You can also use a smple text editor like notepad to “find and replace”. I did this by finding HiZ and replacing with AntA. Use find and replace all. Then save the file. Worked fine for me.

Reason: No reason

DL4YBP
Posts: 3
Joined: Tue Jun 11, 2019 9:16 am

Re: Ready made frequency lists for SDRuno

Post by DL4YBP » Fri Jun 14, 2019 10:08 am

Thank you D.C.Alden for your advice.

73
Hans, DL4YBP
Last edited by DL4YBP on Thu Jan 01, 1970 12:00 am, edited 0 times in total.
Reason: No reason

NORVIN
Posts: 4
Joined: Sat Jun 15, 2019 10:29 pm

Re: Ready made frequency lists for SDRuno

Post by NORVIN » Sun Jun 16, 2019 12:02 am

I've posted a few in the Facebook SDRplay Groups in the Files section.
Last edited by NORVIN on Thu Jan 01, 1970 12:00 am, edited 0 times in total.
Reason: No reason

JohnAE5X
Posts: 14
Joined: Fri May 11, 2018 6:50 pm
Location: Houston, Texas

Re: Ready made frequency lists for SDRuno

Post by JohnAE5X » Thu Jun 20, 2019 10:29 am

Is there a non-Facebook page where these could be posted?

Reason: No reason
